Posté le: 07/12/2016 16:15 Sujet du message: |
|
|
|
Bonjour a tous,
Today I made the internal rigging of the tailboom. On the website of Paolo Severin is a method described to make the inetrnal rigging, which is very usefull. When I visited the Aviodrome I could see how Fokker does this on his "Spin", his first aircraft,

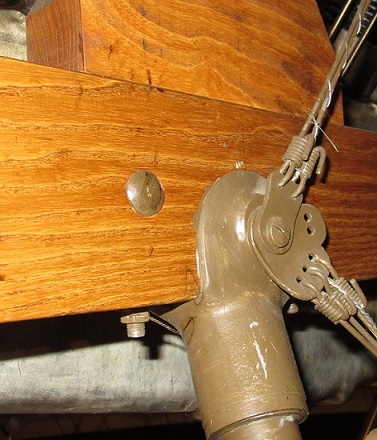

![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_1087_853.jpg)
He made his own "bushes, tubes?" from wire and I tried to do the same.

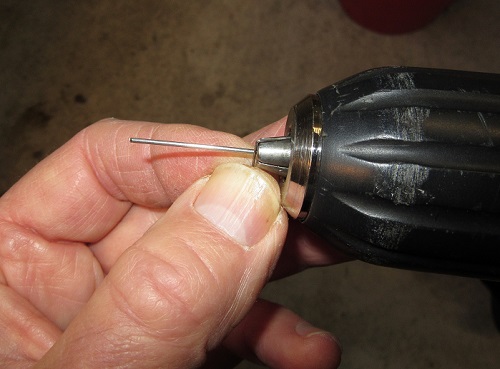

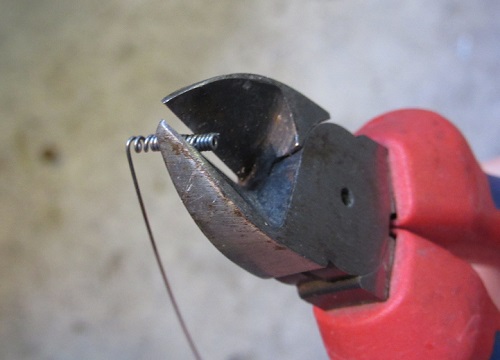

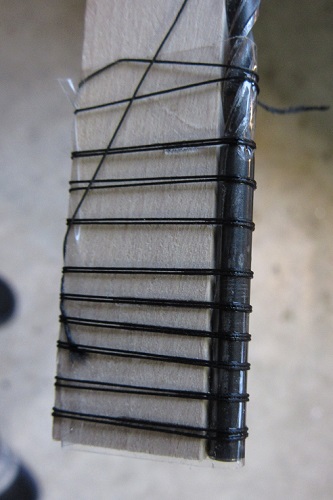

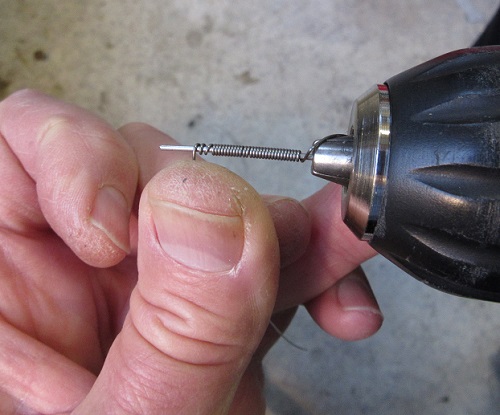

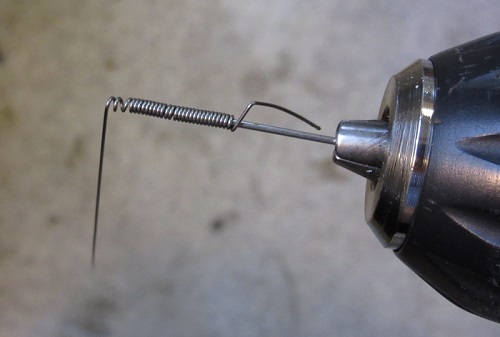

I wrapped 0.5 steel wire around a core of 1mm steel in a drill.
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0076_115.jpg)

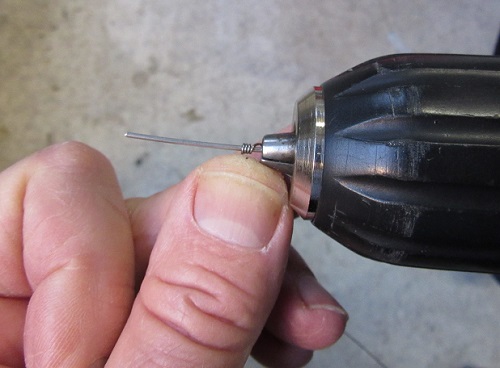

![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0078_147.jpg)
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0079_114.jpg)

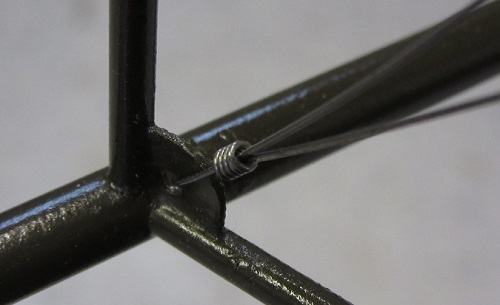

![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0080_553.jpg) cut it in short "bushes"
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0081_163.jpg)
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0082_130.jpg)

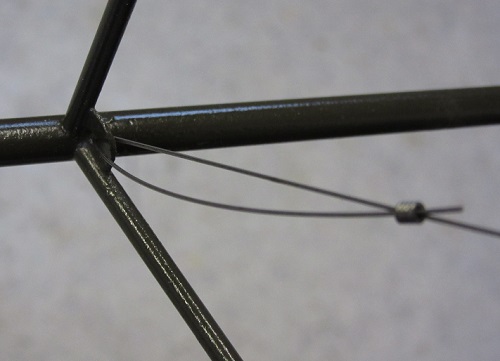

![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0083_631.jpg)

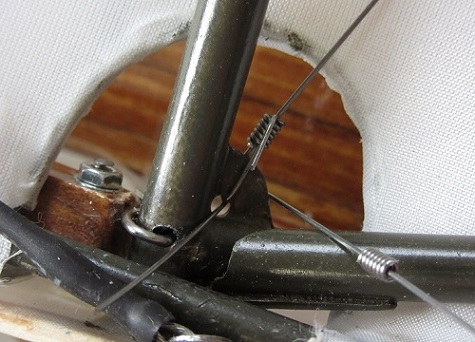

Put it under tension when I put it through the other hole..
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0087_448.jpg) fold it around and put the bush on it
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0088_172.jpg)

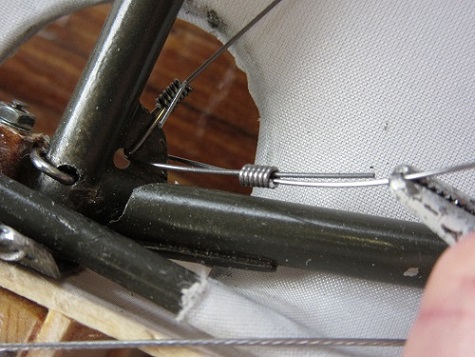

Sometimes it was hard to reach....

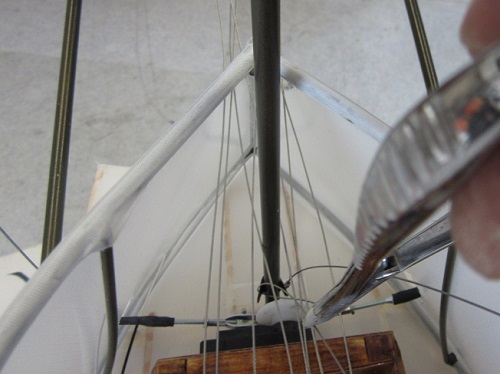

![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0084_138.jpg)
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0085_826.jpg)

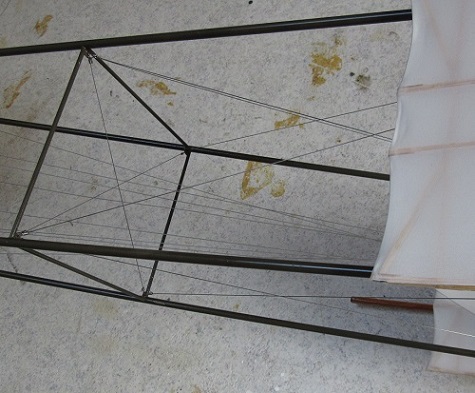

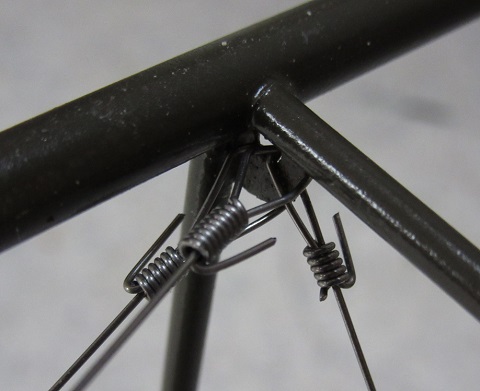

The tailboom became incrideble stiff, I hope not to stiff, when I touch a wire accidentally it sounds like a guitar
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0093_100.jpg)

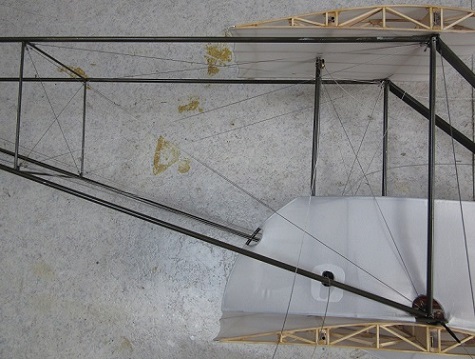

![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0096_178.jpg) some detail;
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0095_272.jpg)
to be continued,
Vincent. |
|
Revenir en haut de page |
|
![](templates/Appalachia/images/spacer.gif) |
Johannes Serial Posteur
![Serial Posteur Serial Posteur](images/pilot-rang/7.gif)
![](images/avatars/496517112470a8c394d8b8.jpg)
Inscrit le: 23 Juil 2007
![germany.gif](images/flags/germany.gif)
Localisation: Leichlingen
Âge: 64
![Sagittaire Sagittaire](templates/Appalachia/images/birthday/icon_zodiac_sagittarius.gif)
|
Posté le: 07/12/2016 23:08 Sujet du message: |
|
|
|
Hi Vincent,.
einfach genial wie Du baust - Spitze
LG Johannes |
|
Revenir en haut de page |
|
![](templates/Appalachia/images/spacer.gif) |
bocorvin Maniaco Posteur
![Maniaco Posteur Maniaco Posteur](images/pilot-rang/4.gif)
![](images/avatars/8624608359b10d138a976.png)
Inscrit le: 17 Aoû 2015
![netherlands.gif](images/flags/netherlands.gif)
Localisation: Hillegom
Âge: 78
![Joyeux anniversaire ! Joyeux anniversaire !](templates/Appalachia/images/birthday/mini_birthcake.gif)
|
Posté le: 15/12/2016 16:46 Sujet du message: |
|
|
|
Merci Johannes for the nice comments!

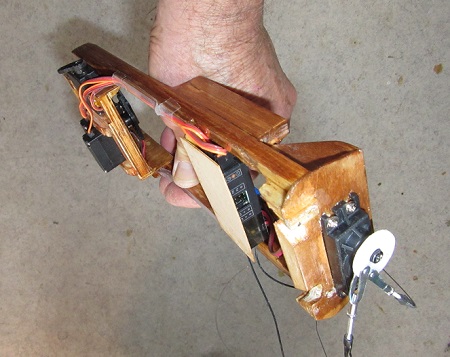

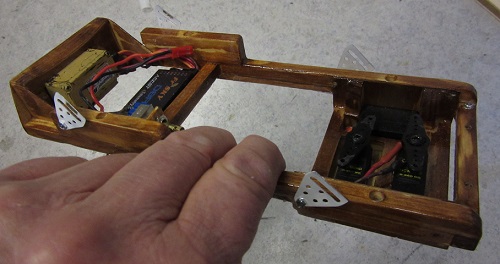

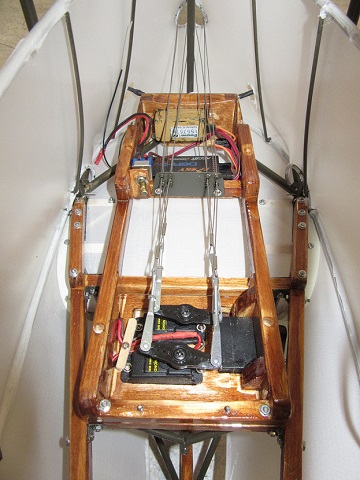

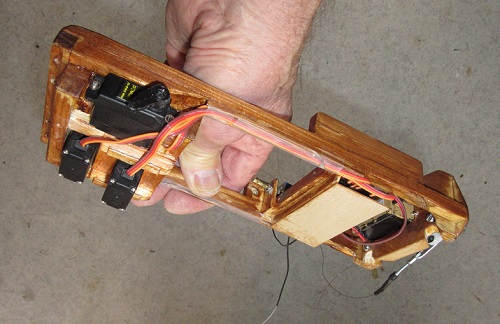

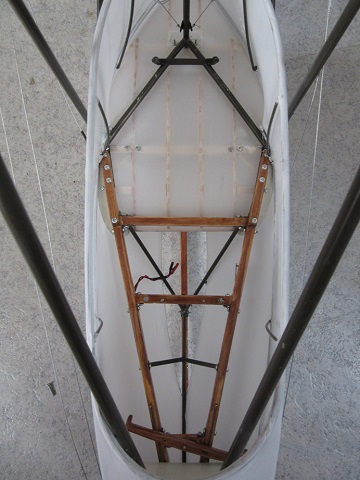

I tried to put all the rc components out of sight under the seats and more or less demountable. Without ;
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0099_178.jpg) and with the rc components/ seat supporting structure
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0070_177.jpg)
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0102_211.jpg)
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0103_472.jpg)

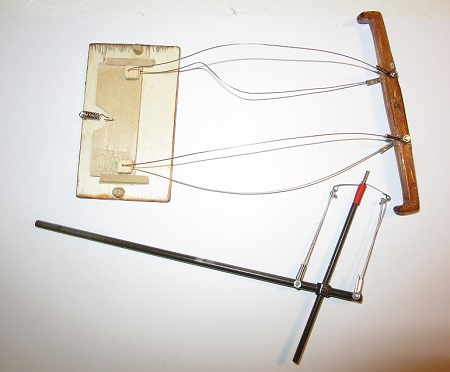

The steering stick and rudder pedals ready for mounting;
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0105_170.jpg) The springs are only to keep the wires straight, its all not functional
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0107_102.jpg)

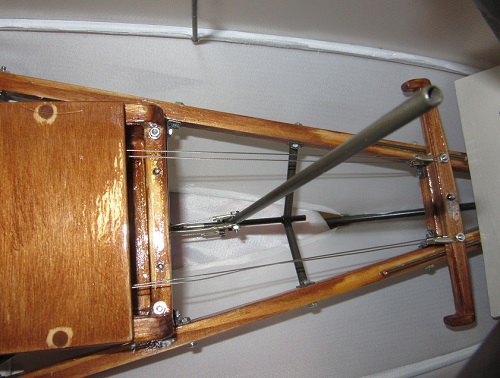

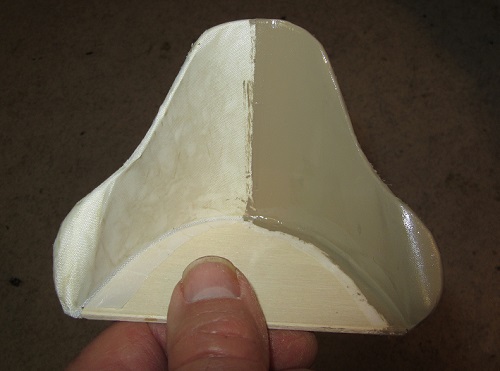

The backrest of the seats covered with diacov and painted with humbrol

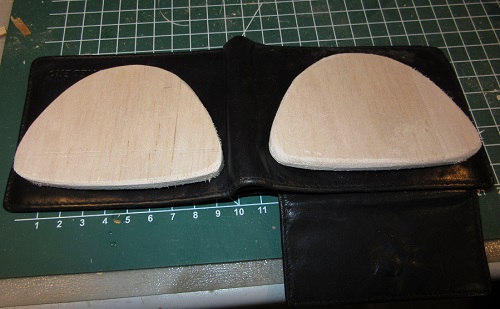

![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0108_212.jpg) The cushion was made from 3mm balsa covered with leather from an old purse (nice thin leather)
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0109_856.jpg)
and temporarely in place

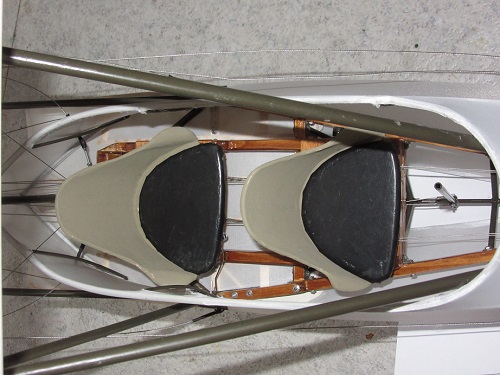

![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0119_477.jpg)
Now I have to make a pilot and a passenger and then I can make the harnesses.
To be continued,
Vincent |
|
Revenir en haut de page |
|
![](templates/Appalachia/images/spacer.gif) |
sebastian92 Serial Posteur
![Serial Posteur Serial Posteur](images/pilot-rang/7.gif)
![](images/avatars/143849764355e6ce3183400.gif)
Inscrit le: 01 Sep 2015
![france.gif](images/flags/france.gif)
Localisation: Hauts de seine
Âge: 60
![Scorpion Scorpion](templates/Appalachia/images/birthday/icon_zodiac_scorpio.gif)
|
Posté le: 15/12/2016 17:42 Sujet du message: |
|
|
|
You sacrificed a purse ! I hope that you hidden a coin under the seat as carries happiness as hold traditions
Toujours aussi astucieux et mécanique comme réalisation ![[clap]](images/smiles/Clap.gif)
![](http://www.retroplane.net//forum/images/lignesigne.gif) Pourvu que ça vole, roule, flotte ! normalement j'ai tout bien fait pour…
Un bel avion est un avion qui vole bien ! Marcel Dassault
…………
Sebastian
Vends module émission 2.4 ghz pour Futaba, Hitec TZ-FM + 2 récepteurs corona 8 voies (contact en MP) |
|
Revenir en haut de page |
|
![](templates/Appalachia/images/spacer.gif) |
de Schaetzen Harold Maniaco Posteur
![Maniaco Posteur Maniaco Posteur](images/pilot-rang/4.gif)
![](images/avatars/154.gif)
Inscrit le: 06 Avr 2006
![belgium.gif](images/flags/belgium.gif)
Localisation: Schilde
Âge: 78
![Verseau Verseau](templates/Appalachia/images/birthday/icon_zodiac_aquarius.gif)
|
Posté le: 16/12/2016 10:31 Sujet du message: |
|
|
|
Dear Vincent,
You have steel nerves!
Good continuation.
Harold |
|
Revenir en haut de page |
|
![](templates/Appalachia/images/spacer.gif) |
bocorvin Maniaco Posteur
![Maniaco Posteur Maniaco Posteur](images/pilot-rang/4.gif)
![](images/avatars/8624608359b10d138a976.png)
Inscrit le: 17 Aoû 2015
![netherlands.gif](images/flags/netherlands.gif)
Localisation: Hillegom
Âge: 78
![Joyeux anniversaire ! Joyeux anniversaire !](templates/Appalachia/images/birthday/mini_birthcake.gif)
|
Posté le: 05/01/2017 14:32 Sujet du message: |
|
|
|
Hello everyone,
First, thankyou Sebastian and Harold for your comments! It took some time because I had a bike accident followed by influenza, it took some time!
I went on putting the grabrails?? and wingskids at the wings. I tried to avoid Philips screws, so I used M2 bolts and nuts
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0126_966.jpg)

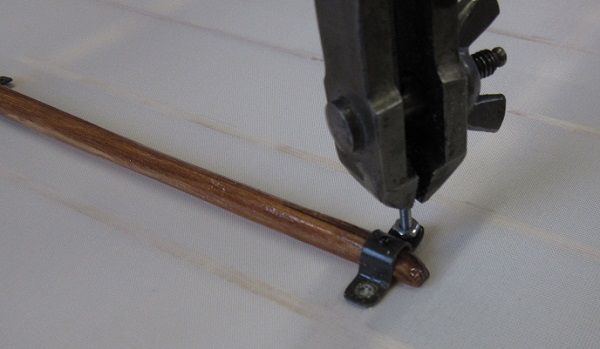

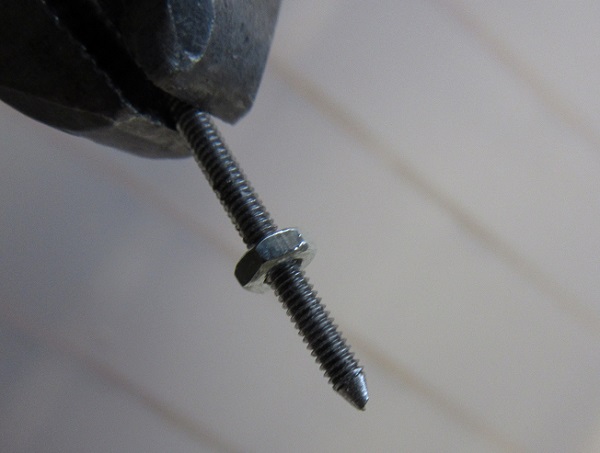

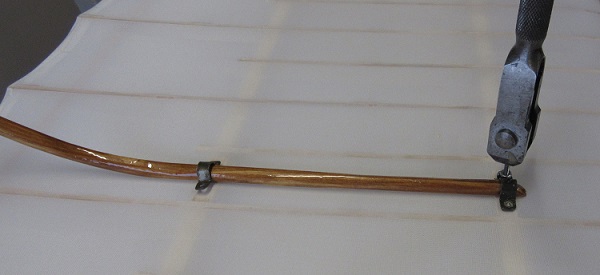

A small pin went through the skid at the front end to avoid rotation, I hope its flexible enough not to break.
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0128_211.jpg)
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0127_818.jpg)

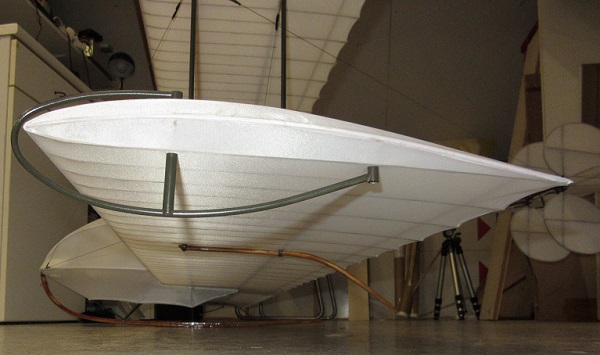

The grabrails are fastened with a M3 bolt through the maingirder in the front and a screw at the rear.
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0136_135.jpg)
In the meantime I worried myself how to transport the whole lot.

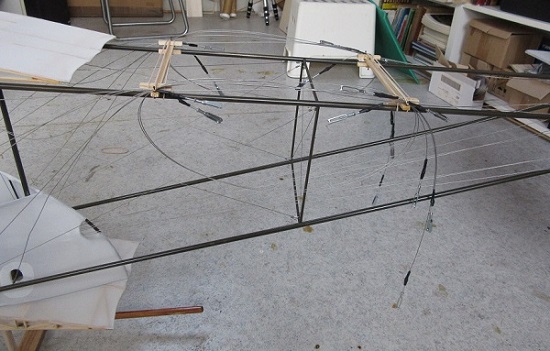

There are 8 cables per side and kinks (coudes?) are a real danger. It is just a sailingboat with the mast lowered. So after lots of thinking I came up with some "helpthings"

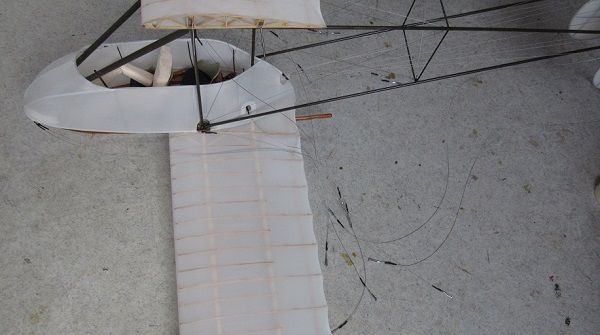

![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0131_415.jpg) Spruce 8 X 4 mm with pins and rubberbands do the trick, I hope.
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0129_202.jpg) Flexible rigging cables, flexible steering cables and rigid rigging, hopefully it will make some noise when flying
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0132_136.jpg)

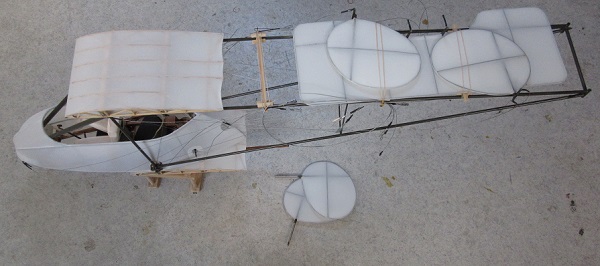

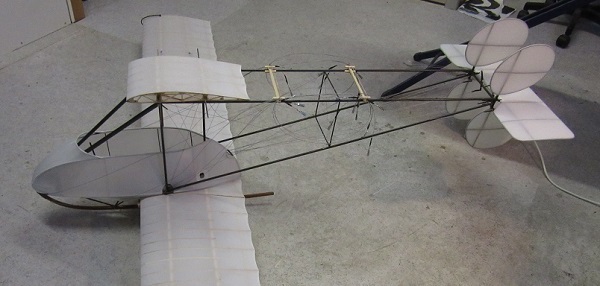

With some luck the tailplanes fitted on top
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0133_160.jpg)
The remaining vertical tailplanes go with the wings.

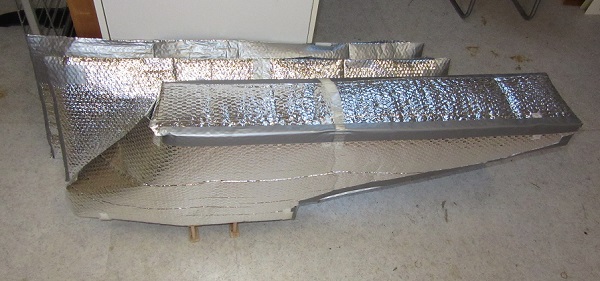

![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0134_799.jpg) All the small parts well protected!

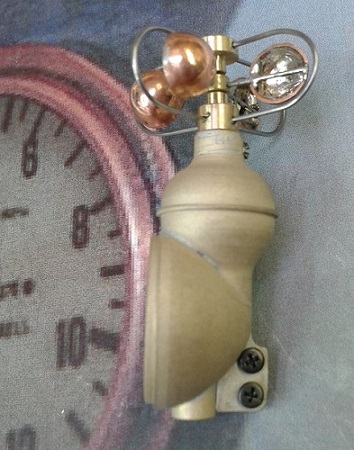

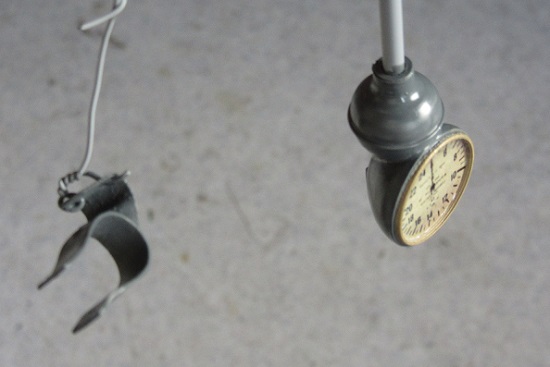

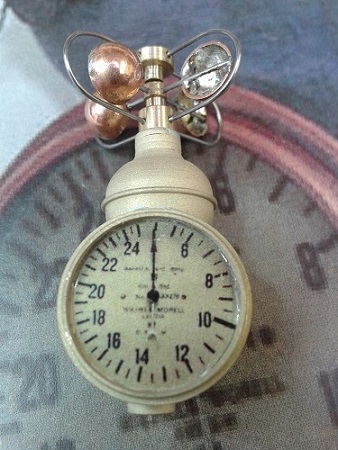

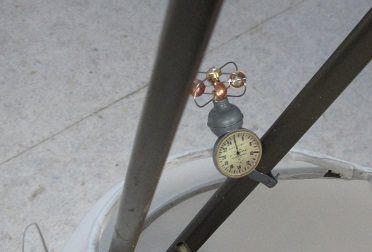

Its almost ready, I am working on the pilot and passenger , the anemometer is only just on the drawing board!
to be continued,
Vincent |
|
Revenir en haut de page |
|
![](templates/Appalachia/images/spacer.gif) |
Mad Doc Accro Posteur
![Accro Posteur Accro Posteur](images/pilot-rang/3.gif)
![](images/avatars/118512136053ed19530a092.jpg)
Inscrit le: 08 Juil 2014
![germany.gif](images/flags/germany.gif)
Localisation: Wuppertal, Deutschland
Âge: 47
![Scorpion Scorpion](templates/Appalachia/images/birthday/icon_zodiac_scorpio.gif)
|
Posté le: 05/01/2017 15:16 Sujet du message: |
|
|
|
Absolut Grossartig!!!
Sieht so aus als wäre der Erstflug nicht mehr weit entfernt!
Ich bin ein bisschen froh das ich die Fokker nicht auch baue, so wie ich es mal vor hatte. Wahrscheinlich hätte ich meine dann schon fünf mal verschrottet....
Auch wenn ich nicht in Vauville dabei sein kann, ich würde sie echt gerne mal fliegen sehen...
Liebe Grüße,
Christian |
|
Revenir en haut de page |
|
![](templates/Appalachia/images/spacer.gif) |
bocorvin Maniaco Posteur
![Maniaco Posteur Maniaco Posteur](images/pilot-rang/4.gif)
![](images/avatars/8624608359b10d138a976.png)
Inscrit le: 17 Aoû 2015
![netherlands.gif](images/flags/netherlands.gif)
Localisation: Hillegom
Âge: 78
![Joyeux anniversaire ! Joyeux anniversaire !](templates/Appalachia/images/birthday/mini_birthcake.gif)
|
Posté le: 05/01/2017 16:43 Sujet du message: |
|
|
|
Hello Christian,
Danke!! und Ich hoffe naturlich es einmal for zu fliegen!
Aber Ich erinnere mich deine worte; jedes mal das man das Flugzeug start, bist mann nicht sicher das es unbeschadigt bleibt
Liebe Grüße,
Vincent |
|
Revenir en haut de page |
|
![](templates/Appalachia/images/spacer.gif) |
bocorvin Maniaco Posteur
![Maniaco Posteur Maniaco Posteur](images/pilot-rang/4.gif)
![](images/avatars/8624608359b10d138a976.png)
Inscrit le: 17 Aoû 2015
![netherlands.gif](images/flags/netherlands.gif)
Localisation: Hillegom
Âge: 78
![Joyeux anniversaire ! Joyeux anniversaire !](templates/Appalachia/images/birthday/mini_birthcake.gif)
|
Posté le: 21/01/2017 13:36 Sujet du message: |
|
|
|
Hello everyone,

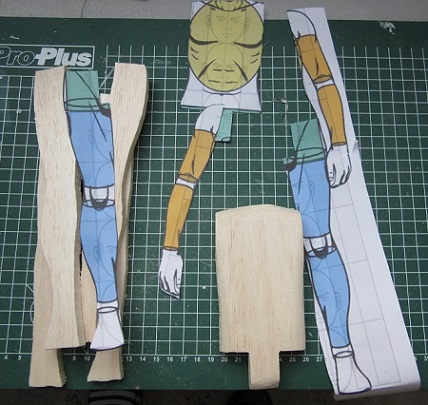

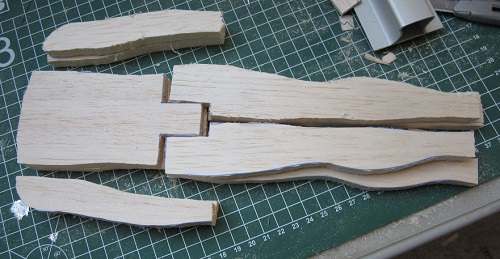

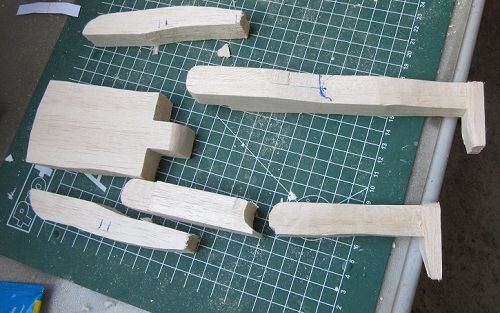

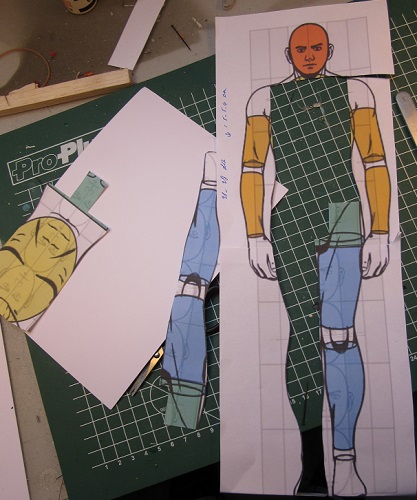

I started with the pilot figures, got a drawing and scaled it down to 1: 5, glued it on card to make templates
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0121_902.jpg) , cut them out in 10 mm balsa, which I doubled to get more or less the right thickness
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0123_268.jpg)
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0139_625.jpg)
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0140_213.jpg)

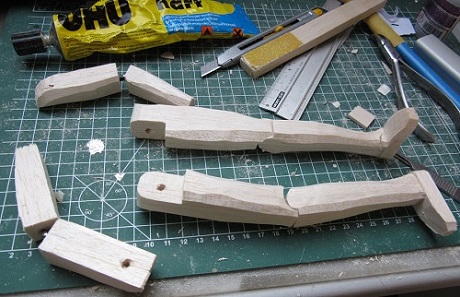

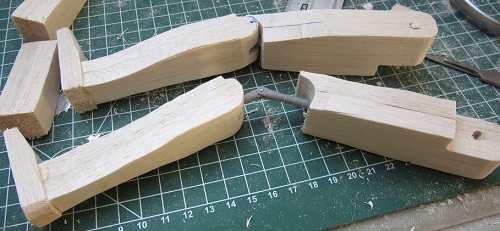

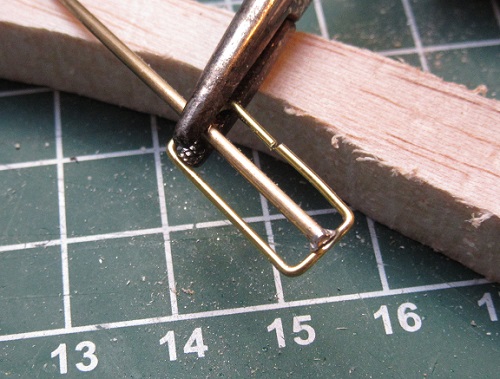

For the knees and elbows I used robart 3.5 mm hinges
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0141_334.jpg)
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0142_160.jpg) The hips and shoulders should rotate in all directions, so I made joints with double elastic band.
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0143_108.jpg)

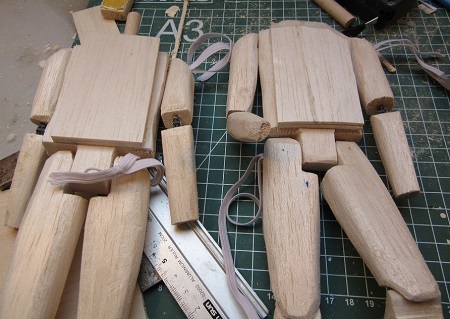

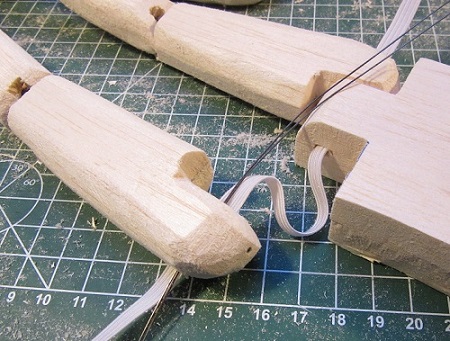

To get the right amount of freedom in articulation, I rounded the inside of the joints.

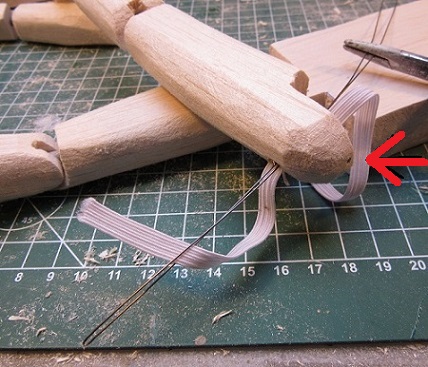

You can just see the place where I put a pin (red arrow), it goes through the middle of the big hole, so the elastic band goes round the pin. I use a double bended steel wire to get the elastic cord in place
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0144_151.jpg) When the clothing is finished, I will put a knot in it! The pilot was a bit thin, so I glued an extra 5mm balsa on his chest.
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0145_155.jpg)

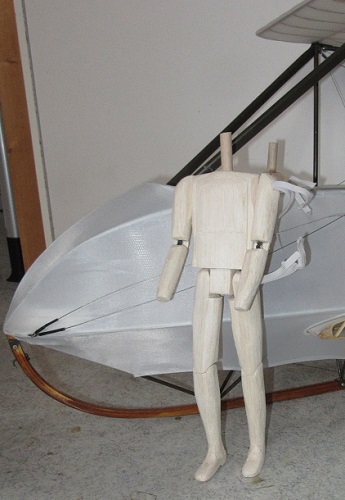

To see if they fit I compared it with the real thing:

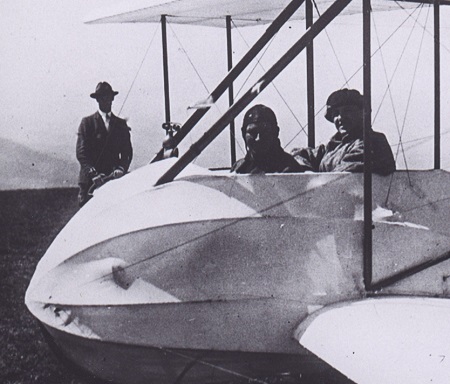

![](http://www.retroplane.net/forum/images/uploads/bocorvin/2157_006018_551.jpg)
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0147_149.jpg) I also doubled th Diacov on the nacelle, to make it a bit less transparant.
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0146_453.jpg)

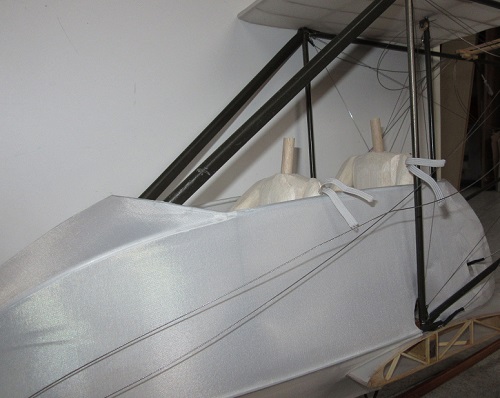

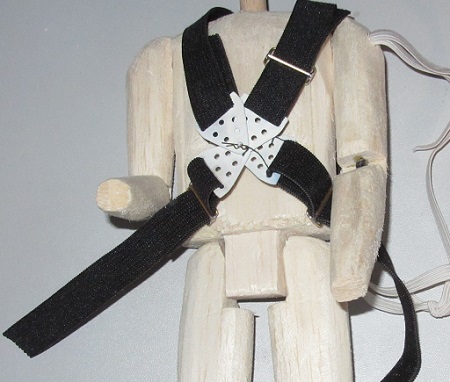

This picture, which I recently found, gives a good idea of the harness he used
![](http://www.retroplane.net/forum/images/uploads/bocorvin/fg_1_harnas_741.jpg) The points where the hip belt is attached is just visible
![](http://www.retroplane.net/forum/images/uploads/bocorvin/249816899-anthony-fokker-wasserkuppe-prototype-glider-sailplane_540.jpg) On this photo you can also see how the shoulder belt is positioned. The belt itself is very broad, scaled down I guessed about 14mm. I could get 14mm wide, black elastic band, so that problem was solved. I made the anchoring plates from 0.5 mm aluminium (from a can)

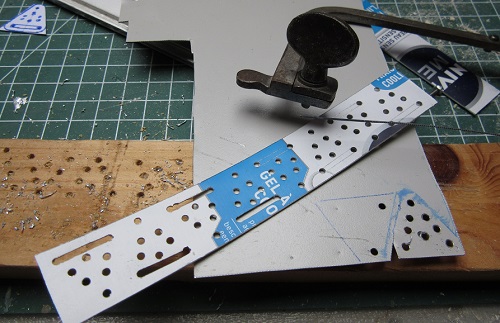

![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0148_705.jpg) , made a jig from steel plate. A lot of plates, sprayed white.

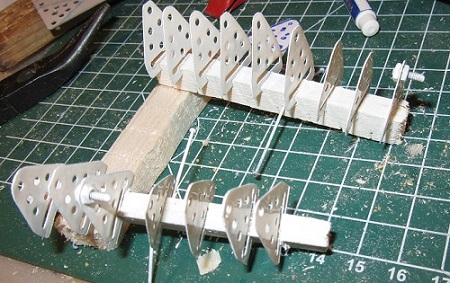

![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0149_122.jpg) Bolted with M2 just behind the seats ( the shoulder belts have each one point, not on this photo)
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0150_890.jpg) I had to take this unit out again
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0185_663.jpg) The buckles and the belts secured with a clip
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0186_192.jpg) The pilot and passenger went to my sister Hans who is going to make the clothes (I can't wait!!)

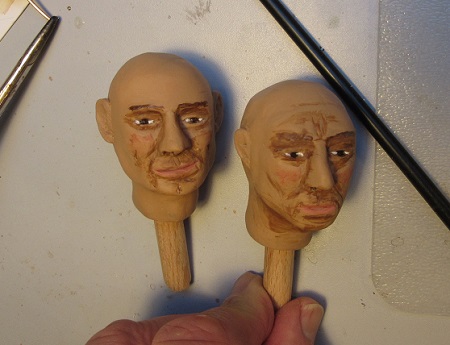

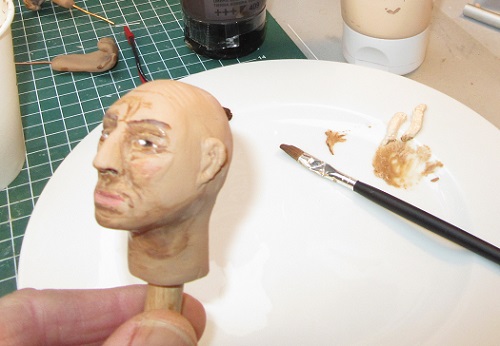

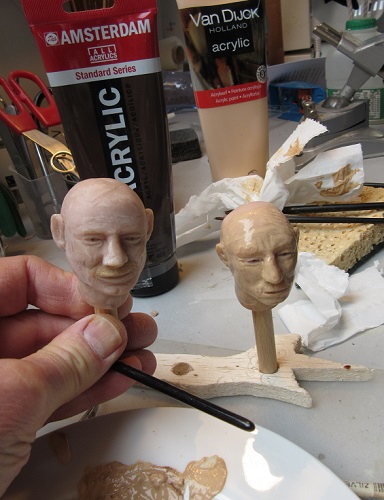

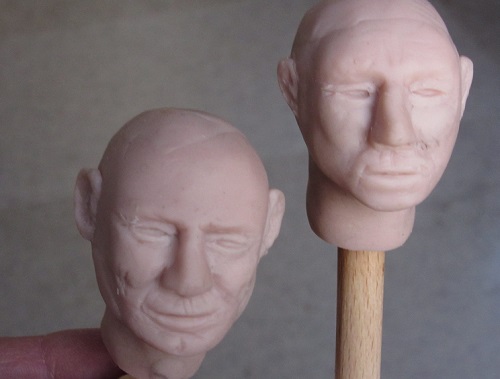

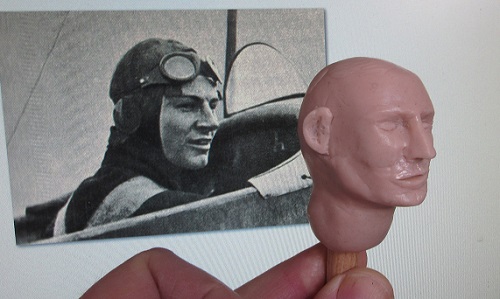

Quite unexpected I started with the heads, made from super sculpey. tI tried to make the pilot look like Anthony Fokker
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0199_583.jpg) , I altered him a bit and made the passenger, which looked a bit less optimistic
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0201_803.jpg) Both will be wearing caps, so the ears will be covered.
The heads are baked, but not yet painted, next thing to do!
Will be continued,
Vincent |
|
Revenir en haut de page |
|
![](templates/Appalachia/images/spacer.gif) |
Fotor Stagiaire Posteur
![Stagiaire Posteur Stagiaire Posteur](images/pilot-rang/0.gif)
![](images/avatars/18621969254bbcc58b0f225.jpg)
Inscrit le: 26 Mar 2010
![netherlands.gif](images/flags/netherlands.gif)
Âge: 49
![Gémeau Gémeau](templates/Appalachia/images/birthday/icon_zodiac_gemini.gif)
|
Posté le: 21/01/2017 13:41 Sujet du message: |
|
|
|
Amazing how you make everything yourself ![[clap]](images/smiles/Clap.gif) |
|
Revenir en haut de page |
|
![](templates/Appalachia/images/spacer.gif) |
Philippe26 Psycho Posteur
![Psycho Posteur Psycho Posteur](images/pilot-rang/6.gif)
![](images/avatars/29679464056cd77a906b7d.jpg)
Inscrit le: 10 Fév 2015
![france.gif](images/flags/france.gif)
Localisation: Allan près de Montélimar
Âge: 70
![Sagittaire Sagittaire](templates/Appalachia/images/birthday/icon_zodiac_sagittarius.gif)
|
Posté le: 21/01/2017 13:58 Sujet du message: |
|
|
|
Yes absolutely,
That's the true modelling.... congratulation.
Your two passengers look great !
Philippe
![](http://www.retroplane.net//forum/images/lignesigne.gif) Je ne suis pas vieux, je suis jeune depuis plus longtemps que vous......
I am not old, I am young for longer than you .....
"C'est impossible, dit la Fierté; c'est risqué, dit l'Expérience; c'est sans issue, dit la Raison; mais essayons, murmure le coeur » W.A.Ward |
|
Revenir en haut de page |
|
![](templates/Appalachia/images/spacer.gif) |
DOMINIQUE DIOT Incurable Posteur
![Incurable Posteur Incurable Posteur](images/pilot-rang/5.gif)
![](images/avatars/120305178058e7b69578ecb.jpg)
Inscrit le: 03 Nov 2013
![france.gif](images/flags/france.gif)
Localisation: Somme
Âge: 70
![Vierge Vierge](templates/Appalachia/images/birthday/icon_zodiac_virgo.gif)
|
Posté le: 21/01/2017 14:54 Sujet du message: |
|
|
|
superbe travail ![[amen]](images/smiles/amen.gif)
![](http://www.retroplane.net//forum/images/lignesigne.gif) Lorsque on est encore en l'air, c'est qu'il est encore entier.
Dominique |
|
Revenir en haut de page |
|
![](templates/Appalachia/images/spacer.gif) |
michel Serial Posteur
![Serial Posteur Serial Posteur](images/pilot-rang/7.gif)
![](images/avatars/gallery/Avatars-Planeurs/slingsbyT31-2.jpg)
Inscrit le: 04 Mar 2007
![france.gif](images/flags/france.gif)
Localisation: Luchon
|
Posté le: 21/01/2017 19:03 Sujet du message: |
|
|
|
SUPERBE construction ,et beau pilote
Michel
![](http://www.retroplane.net//forum/images/lignesigne.gif)
![](http://www.retroplane.net//forum/images/nervuredor/nervure-dor-2014.gif)
|
|
Revenir en haut de page |
|
![](templates/Appalachia/images/spacer.gif) |
bocorvin Maniaco Posteur
![Maniaco Posteur Maniaco Posteur](images/pilot-rang/4.gif)
![](images/avatars/8624608359b10d138a976.png)
Inscrit le: 17 Aoû 2015
![netherlands.gif](images/flags/netherlands.gif)
Localisation: Hillegom
Âge: 78
![Joyeux anniversaire ! Joyeux anniversaire !](templates/Appalachia/images/birthday/mini_birthcake.gif)
|
Posté le: 23/01/2017 15:35 Sujet du message: |
|
|
|
Bonjour a tous,
Thanks very much Fotor, Philippe, Dominique and Michel for your encouraging comments!
Just when I more or less finished the heads I found a very useful "class" on youtube how to model heads in sculpey clay, worth to take a look at!
https://www.youtube.com/watch?v=BSbSX-rDYLM&t=38s
Vincent |
|
Revenir en haut de page |
|
![](templates/Appalachia/images/spacer.gif) |
RichardP Accro Posteur
![Accro Posteur Accro Posteur](images/pilot-rang/3.gif)
![](images/avatars/15959538715751a7e691acc.jpg)
Inscrit le: 26 Oct 2012
![world.gif](images/flags/world.gif)
Localisation: ALENCON
Âge: 75
![Cancer Cancer](templates/Appalachia/images/birthday/icon_zodiac_cancer.gif)
|
Posté le: 23/01/2017 16:05 Sujet du message: |
|
|
|
excellent tuto
thank you
![](http://www.retroplane.net//forum/images/lignesigne.gif) Si le problème a une solution, il ne sert à rien de s'inquiéter. Mais s'il n'en a pas, alors s'inquiéter ne change rien. |
|
Revenir en haut de page |
|
![](templates/Appalachia/images/spacer.gif) |
bocorvin Maniaco Posteur
![Maniaco Posteur Maniaco Posteur](images/pilot-rang/4.gif)
![](images/avatars/8624608359b10d138a976.png)
Inscrit le: 17 Aoû 2015
![netherlands.gif](images/flags/netherlands.gif)
Localisation: Hillegom
Âge: 78
![Joyeux anniversaire ! Joyeux anniversaire !](templates/Appalachia/images/birthday/mini_birthcake.gif)
|
Posté le: 26/01/2017 16:32 Sujet du message: |
|
|
|
Hello everyone,

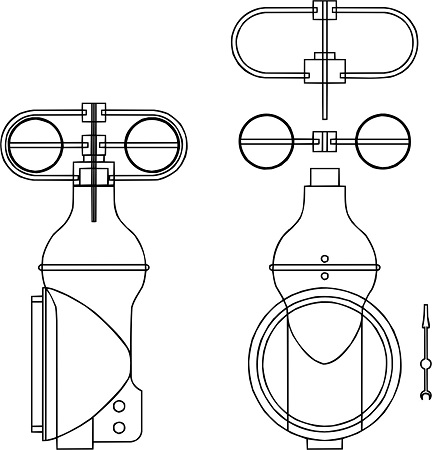

The FG-2 was only equipped with the Wilhelm Morrell anemometer, very well described by Vincent Becancon in his article about the Mira 3.

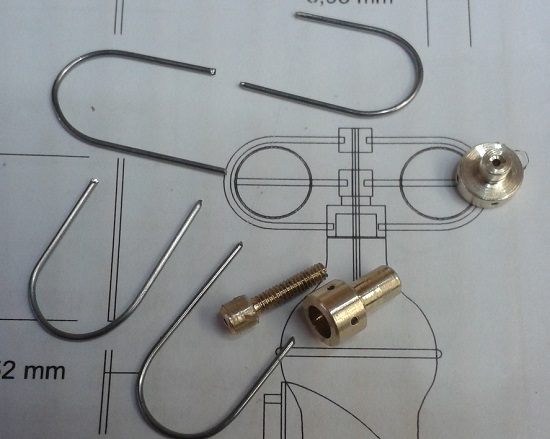

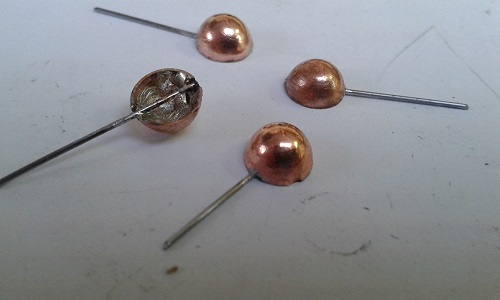

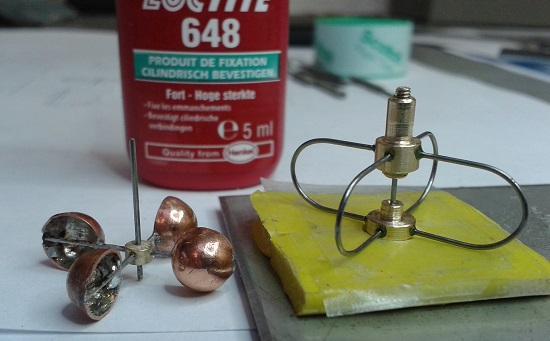

![](http://www.retroplane.net/forum/images/uploads/bocorvin/101_anemometer_114.jpg)

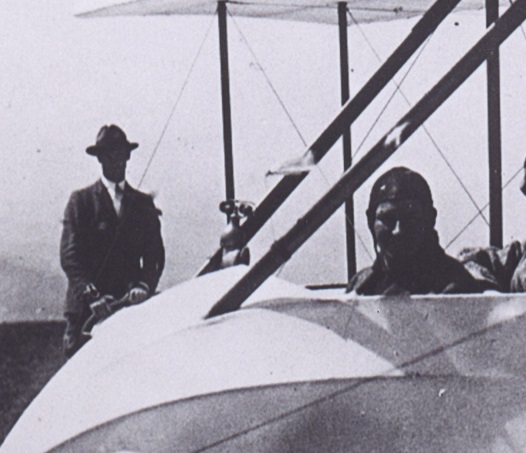

![](http://www.retroplane.net/forum/images/uploads/bocorvin/2157_006018_140.jpg) Here just visible on the right diagonal strut.

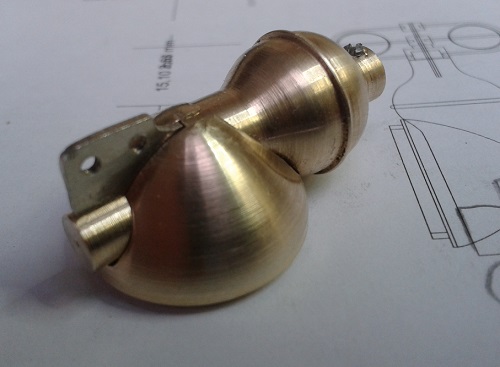

I gave my friend ADRI (who already made the rib templates and all the small ply stuff for the ribs) the plans and asked him if he thought 3D printing was an option. He texted me; just wait!
I had a lucky day! After some time the photo's came in!
So ADRI made this anomemeter completely!!
(I only painted it)

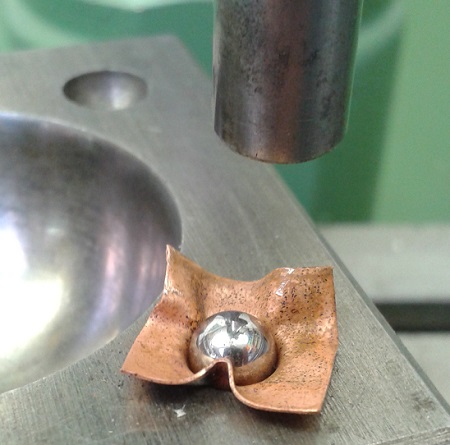

![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG-20170120-WA0009_164.jpeg)

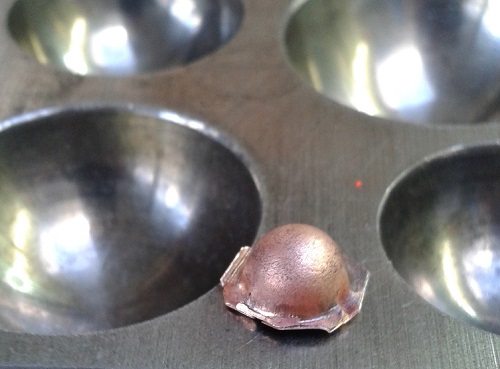

![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG-20170120-WA0012_198.jpeg)

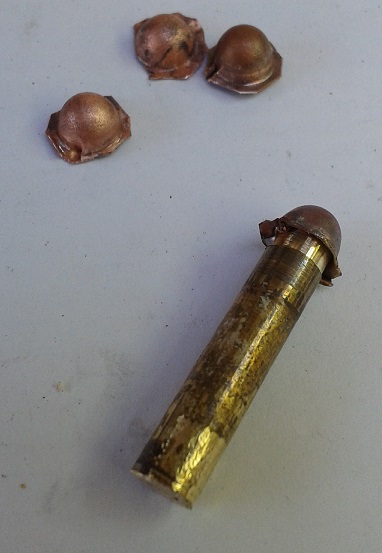

![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG-20170120-WA0017_170.jpeg)

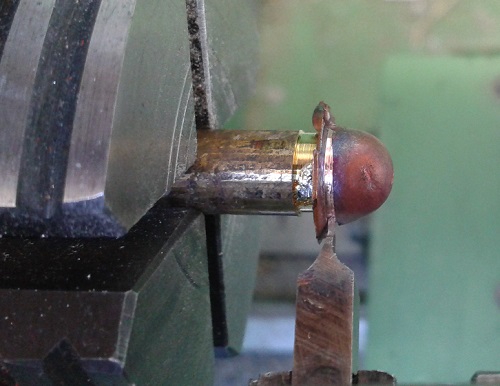

![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG-20170120-WA0020_688.jpeg)

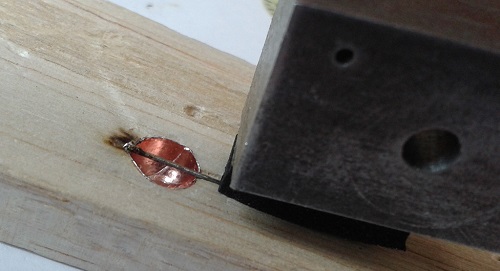

![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG-20170119-WA0005_628.jpeg)
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG-20170120-WA0030_112.jpeg)

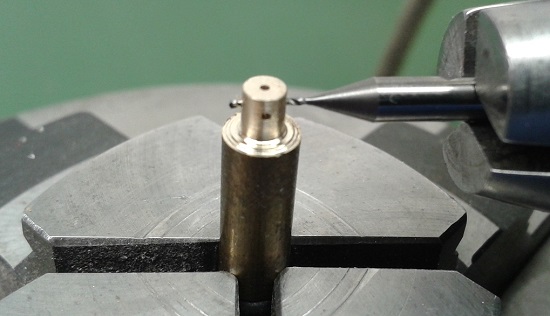

![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG-20170120-WA0038_144.jpeg)

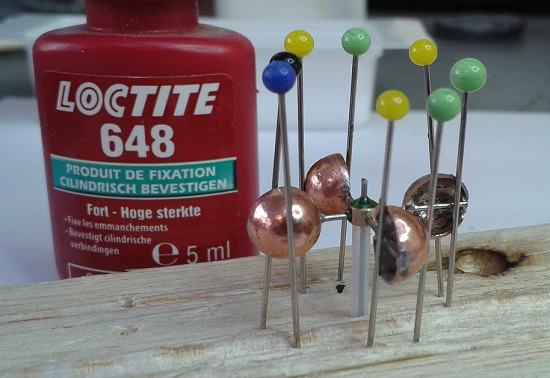

![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG-20170120-WA0040_140.jpeg)

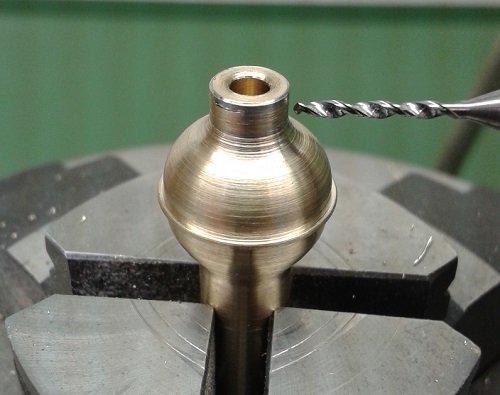

![](http://www.retroplane.net/forum/images/uploads/bocorvin/20170123_134928_147.jpg)
![](http://www.retroplane.net/forum/images/uploads/bocorvin/20170123_145809_112.jpg)

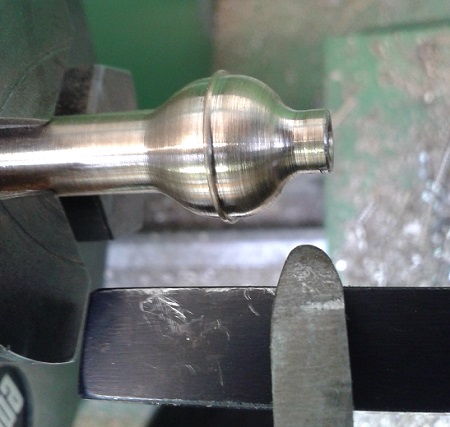

![](http://www.retroplane.net/forum/images/uploads/bocorvin/20170124_142635_424.jpg)
![](http://www.retroplane.net/forum/images/uploads/bocorvin/20170124_142810_186.jpg)

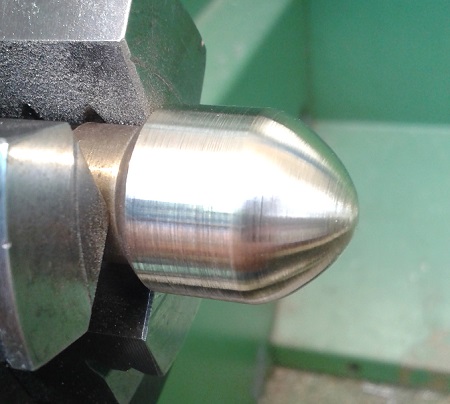

![](http://www.retroplane.net/forum/images/uploads/bocorvin/20170124_145312_443.jpg)

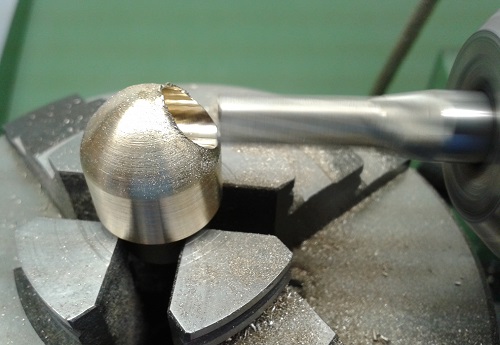

![](http://www.retroplane.net/forum/images/uploads/bocorvin/20170124_150341_315.jpg)

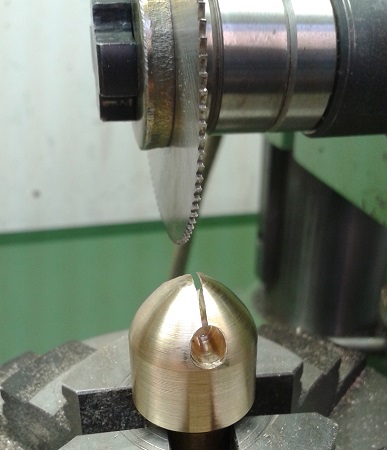

![](http://www.retroplane.net/forum/images/uploads/bocorvin/20170124_152332_452.jpg)
![](http://www.retroplane.net/forum/images/uploads/bocorvin/20170125_122359_214.jpg)

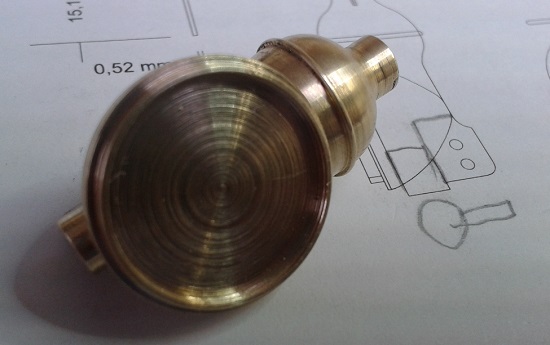

![](http://www.retroplane.net/forum/images/uploads/bocorvin/20170125_122444_137.jpg) The dial is the download of the Mira 3
![](http://www.retroplane.net/forum/images/uploads/bocorvin/20170125_133706_872.jpg)
![](http://www.retroplane.net/forum/images/uploads/bocorvin/20170125_133850_137.jpg)
I was very pleased with his great effort!!

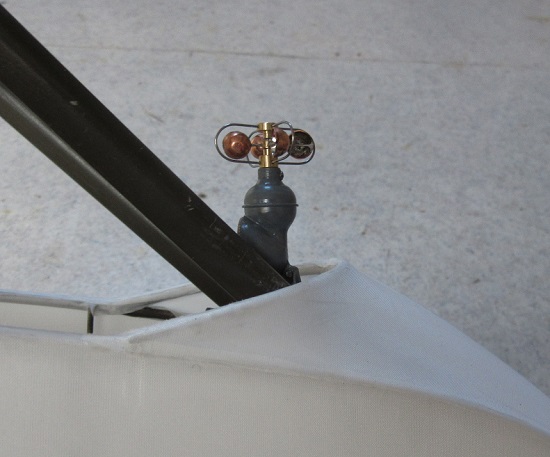

Now I went on,I only had to make the mounting thing and paint it (Humbrol matt grey)

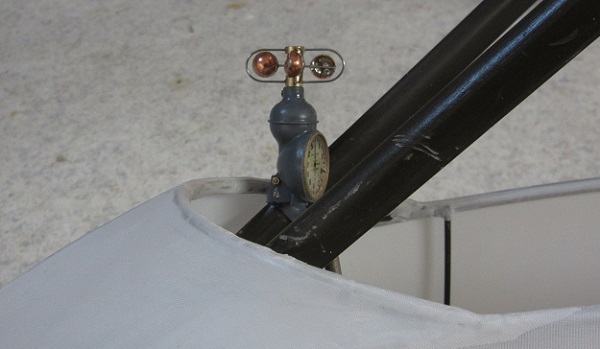

![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0211_108.jpg)
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0213_516.jpg)
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0214_175.jpg)
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0217_176.jpg)
A small video,
https://youtu.be/3INhTQuJVMk
Thank you very much Adri, this was a tricky thing to make!! and I am very pleased with it!!
To be continued,
Vincent
|
|
Revenir en haut de page |
|
![](templates/Appalachia/images/spacer.gif) |
VincentB Serial Posteur
![Serial Posteur Serial Posteur](images/pilot-rang/7.gif)
![](images/avatars/393951427536bb8ff614eb.gif)
Inscrit le: 23 Jan 2006
![world.gif](images/flags/world.gif)
Localisation: A la playa, bajo el sol
Âge: 60
![Scorpion Scorpion](templates/Appalachia/images/birthday/icon_zodiac_scorpio.gif)
|
Posté le: 26/01/2017 17:01 Sujet du message: |
|
|
|
Ca me rappelle des souvenirs. Bravo Vincent, superbe ton anemo WM ![[amen]](images/smiles/amen.gif)
![](http://www.retroplane.net//forum/images/lignesigne.gif) Retroplane et modélisme en pause, vanlife à haute dose. |
|
Revenir en haut de page |
|
![](templates/Appalachia/images/spacer.gif) |
CHAUSSEBOURG Maniaco Posteur
![Maniaco Posteur Maniaco Posteur](images/pilot-rang/4.gif)
![](images/avatars/8486426174fd5af9dadf7a.jpg)
Inscrit le: 22 Sep 2010
![france.gif](images/flags/france.gif)
Localisation: Touraine
Âge: 86
![Taureau Taureau](templates/Appalachia/images/birthday/icon_zodiac_taurus.gif)
|
Posté le: 26/01/2017 18:00 Sujet du message: |
|
|
|
Beautiful work!
Pierre
![](http://www.retroplane.net//forum/images/lignesigne.gif) Lorsqu'on est toujours en l'air, c'est qu'on n'est pas encore posé.
Johannes Walkowiak
LDC |
|
Revenir en haut de page |
|
![](templates/Appalachia/images/spacer.gif) |
Philippe26 Psycho Posteur
![Psycho Posteur Psycho Posteur](images/pilot-rang/6.gif)
![](images/avatars/29679464056cd77a906b7d.jpg)
Inscrit le: 10 Fév 2015
![france.gif](images/flags/france.gif)
Localisation: Allan près de Montélimar
Âge: 70
![Sagittaire Sagittaire](templates/Appalachia/images/birthday/icon_zodiac_sagittarius.gif)
|
Posté le: 26/01/2017 18:03 Sujet du message: |
|
|
|
Hurray for Adri !!!
What a perfect job !
I wonder if it works really
O.K. I'm out !!!
Philippe
![](http://www.retroplane.net//forum/images/lignesigne.gif) Je ne suis pas vieux, je suis jeune depuis plus longtemps que vous......
I am not old, I am young for longer than you .....
"C'est impossible, dit la Fierté; c'est risqué, dit l'Expérience; c'est sans issue, dit la Raison; mais essayons, murmure le coeur » W.A.Ward |
|
Revenir en haut de page |
|
![](templates/Appalachia/images/spacer.gif) |
DOMINIQUE DIOT Incurable Posteur
![Incurable Posteur Incurable Posteur](images/pilot-rang/5.gif)
![](images/avatars/120305178058e7b69578ecb.jpg)
Inscrit le: 03 Nov 2013
![france.gif](images/flags/france.gif)
Localisation: Somme
Âge: 70
![Vierge Vierge](templates/Appalachia/images/birthday/icon_zodiac_virgo.gif)
|
Posté le: 26/01/2017 18:36 Sujet du message: |
|
|
|
superbe travail,bravo ![[amen]](images/smiles/amen.gif)
![](http://www.retroplane.net//forum/images/lignesigne.gif) Lorsque on est encore en l'air, c'est qu'il est encore entier.
Dominique |
|
Revenir en haut de page |
|
![](templates/Appalachia/images/spacer.gif) |
michel Serial Posteur
![Serial Posteur Serial Posteur](images/pilot-rang/7.gif)
![](images/avatars/gallery/Avatars-Planeurs/slingsbyT31-2.jpg)
Inscrit le: 04 Mar 2007
![france.gif](images/flags/france.gif)
Localisation: Luchon
|
Posté le: 26/01/2017 19:09 Sujet du message: |
|
|
|
Moi aussi ça me rappelle des souvenirs ,surtout pour la fabrication des godets
, Vincent il est magnifique
Michel
![](http://www.retroplane.net//forum/images/lignesigne.gif)
![](http://www.retroplane.net//forum/images/nervuredor/nervure-dor-2014.gif)
|
|
Revenir en haut de page |
|
![](templates/Appalachia/images/spacer.gif) |
bocorvin Maniaco Posteur
![Maniaco Posteur Maniaco Posteur](images/pilot-rang/4.gif)
![](images/avatars/8624608359b10d138a976.png)
Inscrit le: 17 Aoû 2015
![netherlands.gif](images/flags/netherlands.gif)
Localisation: Hillegom
Âge: 78
![Joyeux anniversaire ! Joyeux anniversaire !](templates/Appalachia/images/birthday/mini_birthcake.gif)
|
Posté le: 26/01/2017 19:22 Sujet du message: |
|
|
|
Thank you all for the comments, I'll pass them on to Adri, he did this difficult and complicated job in a very creative way!
Vincent
|
|
Revenir en haut de page |
|
![](templates/Appalachia/images/spacer.gif) |
de Schaetzen Harold Maniaco Posteur
![Maniaco Posteur Maniaco Posteur](images/pilot-rang/4.gif)
![](images/avatars/154.gif)
Inscrit le: 06 Avr 2006
![belgium.gif](images/flags/belgium.gif)
Localisation: Schilde
Âge: 78
![Verseau Verseau](templates/Appalachia/images/birthday/icon_zodiac_aquarius.gif)
|
Posté le: 27/01/2017 10:05 Sujet du message: |
|
|
|
Beste Vincent,
Prachtig, indrrukwekkend. En wat een geduld!!!
Ik heb geen woorden om mij uit te drukken.
Bonne continuation.
Harold |
|
Revenir en haut de page |
|
![](templates/Appalachia/images/spacer.gif) |
bocorvin Maniaco Posteur
![Maniaco Posteur Maniaco Posteur](images/pilot-rang/4.gif)
![](images/avatars/8624608359b10d138a976.png)
Inscrit le: 17 Aoû 2015
![netherlands.gif](images/flags/netherlands.gif)
Localisation: Hillegom
Âge: 78
![Joyeux anniversaire ! Joyeux anniversaire !](templates/Appalachia/images/birthday/mini_birthcake.gif)
|
Posté le: 27/01/2017 13:07 Sujet du message: |
|
|
|
Beste Harold,
Bedankt voor je mooie woorden, ik geef ze aan Adri door, want hij heeft dit zo creatief en goed gedaan!
Groet,
Vincent |
|
Revenir en haut de page |
|
![](templates/Appalachia/images/spacer.gif) |
Sed Maniaco Posteur
![Maniaco Posteur Maniaco Posteur](images/pilot-rang/4.gif)
![](images/avatars/7762950765d166b93c2c1e.jpg)
Inscrit le: 13 Mai 2015
![france.gif](images/flags/france.gif)
Localisation: Villeurbanne
Âge: 58
![Taureau Taureau](templates/Appalachia/images/birthday/icon_zodiac_taurus.gif)
|
Posté le: 27/01/2017 20:15 Sujet du message: |
|
|
|
C'est un vrai travail d'orfèvre !
![](http://www.retroplane.net//forum/images/lignesigne.gif) Serge |
|
Revenir en haut de page |
|
![](templates/Appalachia/images/spacer.gif) |
Anonyme Serial Posteur
![Serial Posteur Serial Posteur](images/pilot-rang/7.gif)
![](templates/Appalachia/images/no_avatar.gif)
Inscrit le: 26 Jan 2006
![blank.gif](images/flags/blank.gif)
|
Posté le: 27/01/2017 20:26 Sujet du message: |
|
|
|
Stunning work! ![[clap]](images/smiles/Clap.gif) |
|
Revenir en haut de page |
|
![](templates/Appalachia/images/spacer.gif) |
sebastian92 Serial Posteur
![Serial Posteur Serial Posteur](images/pilot-rang/7.gif)
![](images/avatars/143849764355e6ce3183400.gif)
Inscrit le: 01 Sep 2015
![france.gif](images/flags/france.gif)
Localisation: Hauts de seine
Âge: 60
![Scorpion Scorpion](templates/Appalachia/images/birthday/icon_zodiac_scorpio.gif)
|
Posté le: 27/01/2017 20:38 Sujet du message: |
|
|
|
It's great
In more you are equipped well !
very nice work.
![](http://www.retroplane.net//forum/images/lignesigne.gif) Pourvu que ça vole, roule, flotte ! normalement j'ai tout bien fait pour…
Un bel avion est un avion qui vole bien ! Marcel Dassault
…………
Sebastian
Vends module émission 2.4 ghz pour Futaba, Hitec TZ-FM + 2 récepteurs corona 8 voies (contact en MP) |
|
Revenir en haut de page |
|
![](templates/Appalachia/images/spacer.gif) |
bocorvin Maniaco Posteur
![Maniaco Posteur Maniaco Posteur](images/pilot-rang/4.gif)
![](images/avatars/8624608359b10d138a976.png)
Inscrit le: 17 Aoû 2015
![netherlands.gif](images/flags/netherlands.gif)
Localisation: Hillegom
Âge: 78
![Joyeux anniversaire ! Joyeux anniversaire !](templates/Appalachia/images/birthday/mini_birthcake.gif)
|
Posté le: 27/01/2017 21:43 Sujet du message: |
|
|
|
Thank you for all the nice comments!
I'll pass them on to ADRI, he is the one who made this !!! Its all in the article, he worked several days on it, using all his creativity, skills and his very well equipped workshop.
But I am very pleased with it
Vincent. |
|
Revenir en haut de page |
|
![](templates/Appalachia/images/spacer.gif) |
bocorvin Maniaco Posteur
![Maniaco Posteur Maniaco Posteur](images/pilot-rang/4.gif)
![](images/avatars/8624608359b10d138a976.png)
Inscrit le: 17 Aoû 2015
![netherlands.gif](images/flags/netherlands.gif)
Localisation: Hillegom
Âge: 78
![Joyeux anniversaire ! Joyeux anniversaire !](templates/Appalachia/images/birthday/mini_birthcake.gif)
|
Posté le: 01/02/2017 16:51 Sujet du message: |
|
|
|
Hello everyone,
Next is the painting of the heads, difficult to get it more or less right...
From my wife I borrowed acrylics, skin colour and burnt sienna. Nice thing is you can mix it on a plate and you can speed up the drying proces with a simple hair drier, so you can quickly find out if the colour is right.
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0221_899.jpg) first coat; left is bare sculpey, right has the base colour.
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0223_198.jpg)

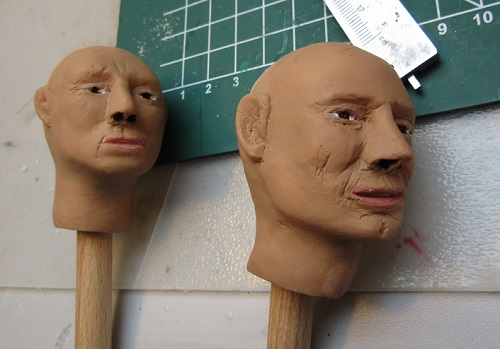

![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0222_174.jpg) Next thing is adding shades

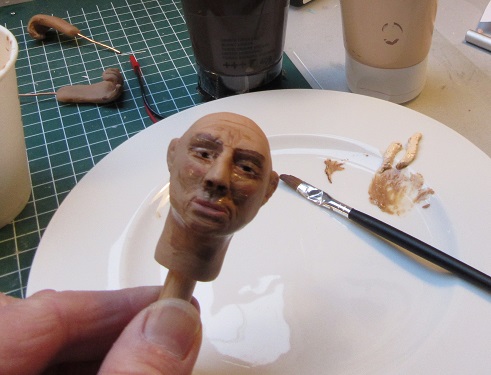

![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0224_544.jpg) bit to much, correcting it again
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0225_186.jpg)
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0226_376.jpg) Looks stil a bit too much, but I'll wait with changing that, till the moment the figures are complete with clothes etc.
Next thing is unknown to me. On this photo there is a very distinct black line which holds the cloth. It looks a bit temporarely, but nice to model it!

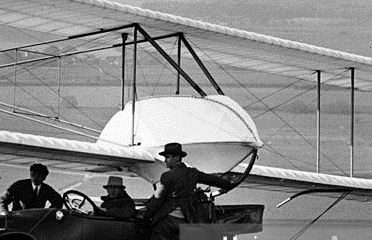

![](http://www.retroplane.net/forum/images/uploads/bocorvin/october-1922-a-fokker-glider-being-transported-by-car-to-the-ilford-picture-id3416677_196.jpg) It starts at the nose and goes round the cockpit aperture.
I like to make holes with some heat, so I made from a pin a very small heat thing wrapped around my soldering iron to make all the small holes.

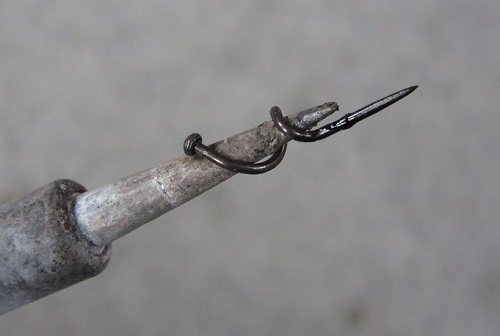

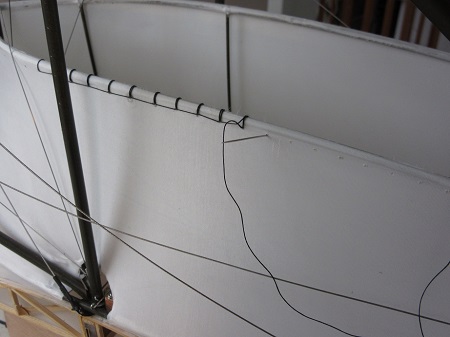

![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0231_687.jpg) It took some time with needle and thread.
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0233_100.jpg)

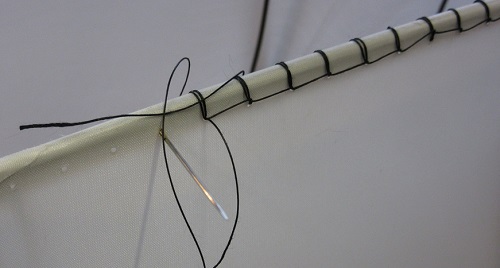

![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0237_951.jpg)

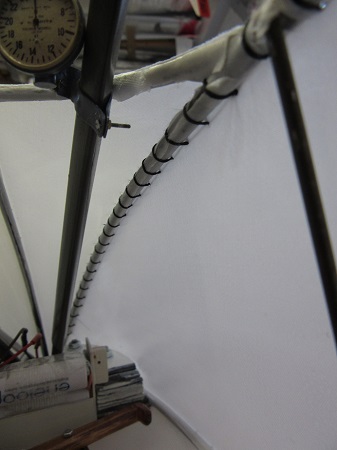

![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0238_378.jpg) How farther I got in the nose, the more difficult it went and the last three stitches were impossible.

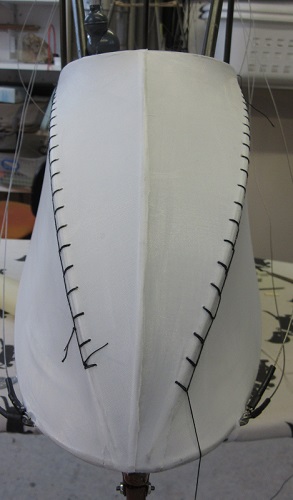

![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0243_168.jpg)
I cheated a bit;
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0244_214.jpg) wrapped thread round, put thin superglue on it and cut away the half loops

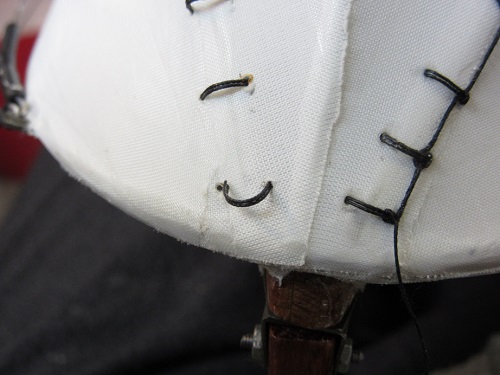

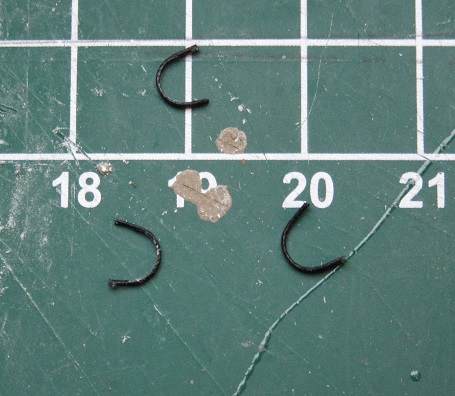

![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0245_441.jpg) Glued the half loops through the holes
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0246_153.jpg)

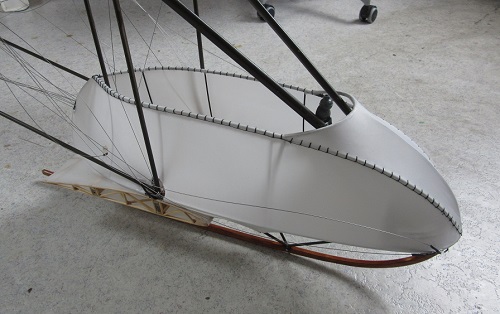

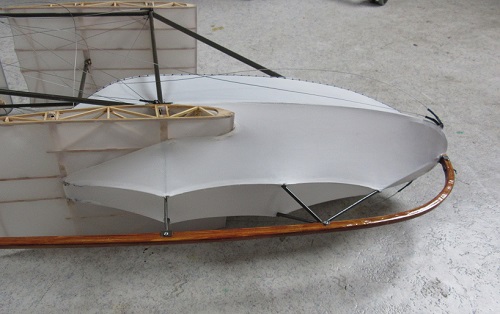

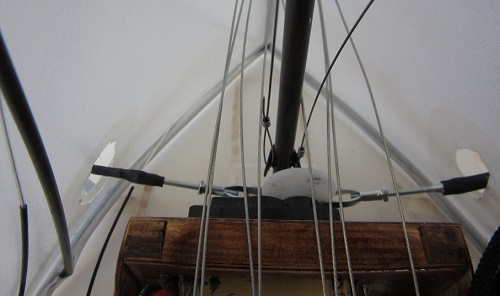

![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0248_126.jpg) Now the interior is almost finished, I closed the bottom with diacov
![](http://www.retroplane.net/forum/images/uploads/bocorvin/IMG_0249_390.jpg)
to be continued,
Vincent
|
|
Revenir en haut de page |
|
![](templates/Appalachia/images/spacer.gif) |
Christian Serial Posteur
![Serial Posteur Serial Posteur](images/pilot-rang/7.gif)
![](images/avatars/762211819545677bcb626e.jpg)
Inscrit le: 02 Mai 2006
![france.gif](images/flags/france.gif)
Localisation: Europe
Âge: 61
![Verseau Verseau](templates/Appalachia/images/birthday/icon_zodiac_aquarius.gif)
|
Posté le: 02/02/2017 21:38 Sujet du message: |
|
|
|
C'est vraiment magnifique
Le pilote c'est la tête à Vincent ?
Christian
![](http://www.retroplane.net//forum/images/lignesigne.gif)
![](http://www.retroplane.net//forum/images/nervuredor/nervure-dor-2008.gif)
Orlik en construction |
|
Revenir en haut de page |
|
![](templates/Appalachia/images/spacer.gif) |
|
